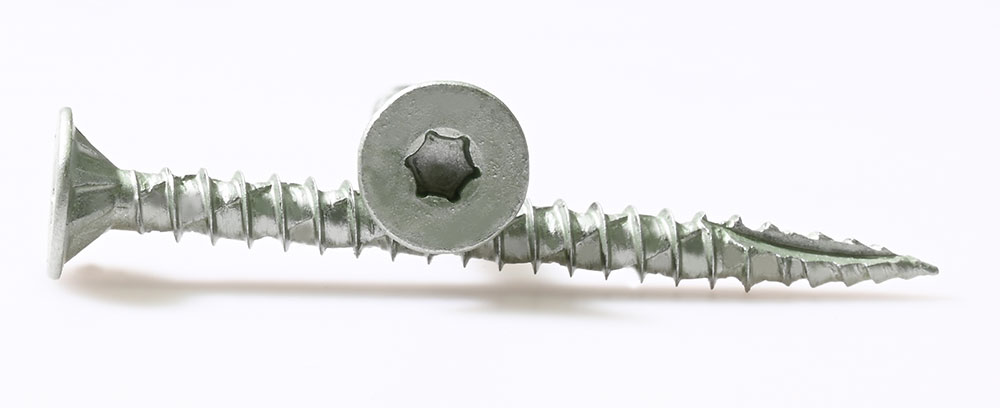

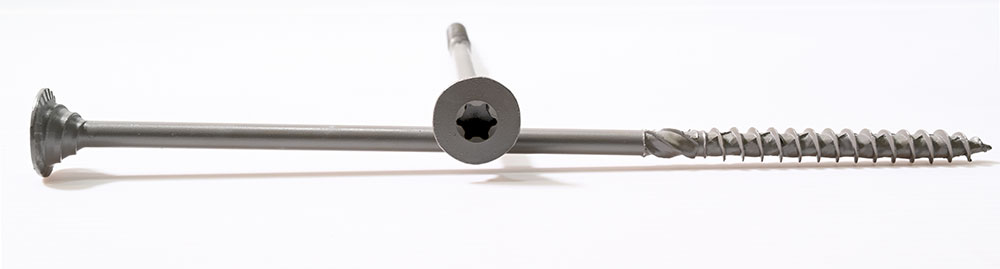

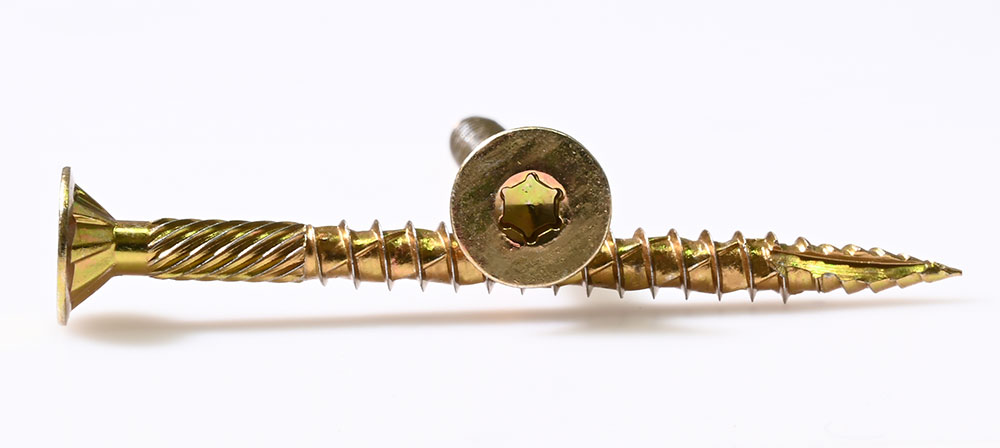

Hex-Star Recess Screw

Special Drive Recess Series is designed specifically to overcome problems, ensuring a seamless and efficient installation process.
https://www.fongprean.com/web/image/product.template/21/image_1920?unique=20fe86e

The Hex-Star Recess Screw combines the strengths of hexagonal and star-shaped (Torx) recess designs, offering superior performance and versatility.

Features
1. Dual Drive Compatibility: Usable with both hexagonal tools (Allen wrenches) and star-shaped drivers (Torx), ensuring flexibility in tool selection.
2. Enhanced Torque Transmission: Optimized geometry allows higher torque transfer while minimizing the risk of stripping the screw head.
3. Precision Fit: Ensures a secure connection between the driver and the screw, reducing slippage during operation.
4. Durability: The recessed design protects the screw head from wear and damage, even under heavy-duty applications.

This innovative design ensures stable and secure bit engagement, reducing physical fatigue while extending the screw's lifespan. Additionally, Hex-Star recessing screws are compatible with both hex and star bits, providing greater convenience and reliability.

We also offer customized solutions to meet your specific needs, including size, head style, thread type, point type, and surface treatment. Whether you're looking for enhanced performance or tailored features, Hex-Star recess screws deliver reliability and versatility for any application.

  • Surface Treatment

This combination does not exist.

Application: Special Drive Recess
Product DescriptionSpecificationRecommend

Product Description

Feature

Unparalleled Stability and Precision

Experience the next level of fastening with our Hex Star Recess. This unique design provides unparalleled stability, preventing wobbling, stripping and slipping during the installation process.

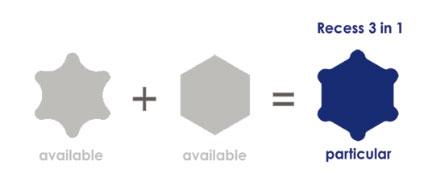

Star & Hex Bit Available

Both of star lobe and hex bits are also accessible on hex-star recess.


Specification

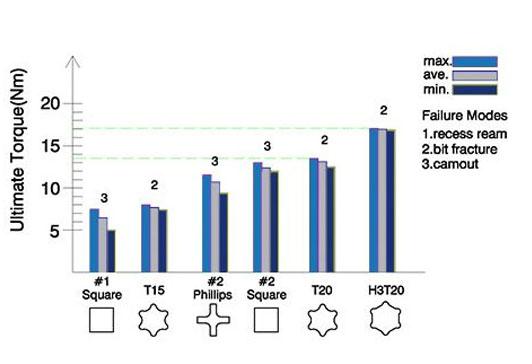

Torsional Strength Test

1. Test: PH#2, SQ#1, SQ#2, Torx, Patent Hex-Star

2. Compare with several common recess to prove unparalleled performance of Patent Hex-Star recess.

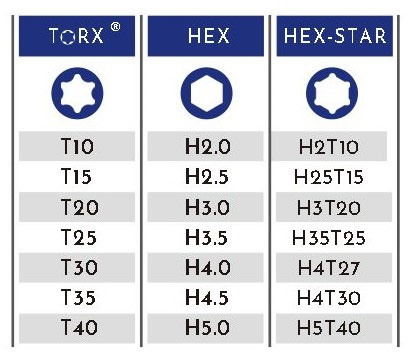

Size Reference

1. Hex star recess could be instead by torx or hex if needed. To check size reference as alternative.
