Multi-Purpose MDF Screw, Sharp-Drill Point

Difference between regular sharp point, upgrading sharp-drill point MDF screw is perfect for MDF board to light gauge steel,wood, and aluminum without pre-drilling. Patent MS head provide clean finished for deck application.
https://www.fongprean.com/web/image/product.template/156/image_1920?unique=8c653a6

Material : Carbon steel、Stainless steel

Application: MDF Wood、Chipboard、Aluminum 、Light Gauge Steel

Size: M3 - M8、#5 - 5/16

Length: 16 - 300mm、5/8" - 11 3/4"

We can provide a customized service, including a variety of head, head recess, thread, point styles and surface treatment types, to solve you problems.

  • Surface Treatment
  • Screw Drivers
  • Size

This combination does not exist.

Size: M3 - M8、#5 - 5/16
Point: Sharp-Drill

Product Description

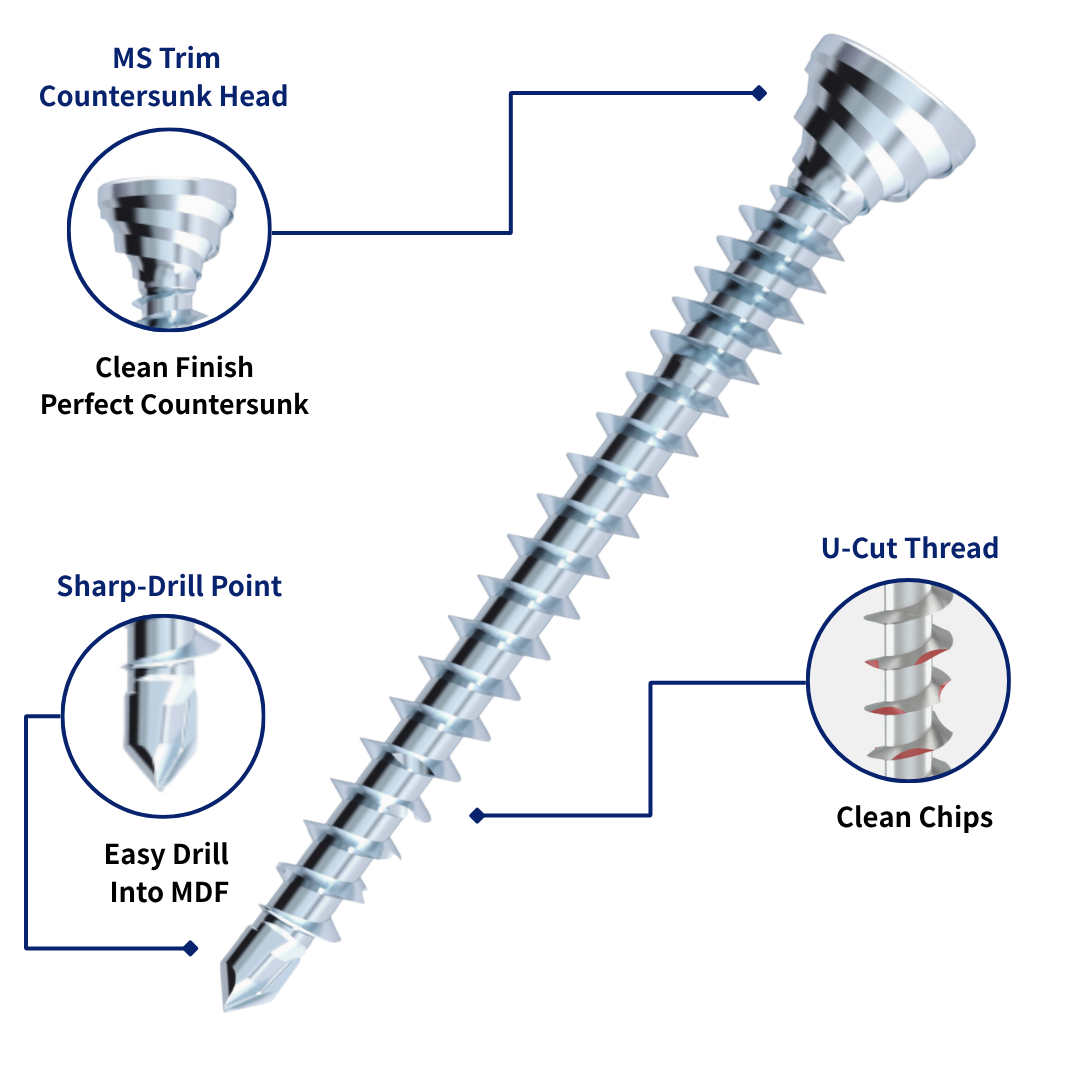

Feature

MS Countersunk Head

Patent Spiral countersunk head ensure clean and flush finished without any burrs and mushrooming.

Distinctive U-Cut Thread

The primary objective of the U-Cut thread is to facilitate the effortless cutting of fibers, thereby enhancing the ability of the upper layer thread to firmly grip into both MDF board and light gauge steel substrates.


Sharp-Drill Point

Especially sharp-drill point design for drilling into MDF board to light gauge steel or aluminum which the max. thickness 0.6 mm. Easy penetration and strong hold within two board.


Specification


A Multi-Purpose MDF Screw


MDF boards find widespread application across various sectors due to their versatility and adaptability. For construction, they are utilized in interior design such as wall paneling, decking, moldings, trim work and decorative elements.

Therefore, it's very important about capability of MDF screw while installing on each sectors. Our innovative multi-purpose MDF screw are engineered to excel in a variety of materials, from connecting to wood, chipboard, particle board even light gauge steel.

Regarding to try and error, upgrade product with sharp-drill point to fix difficulty about material combination.

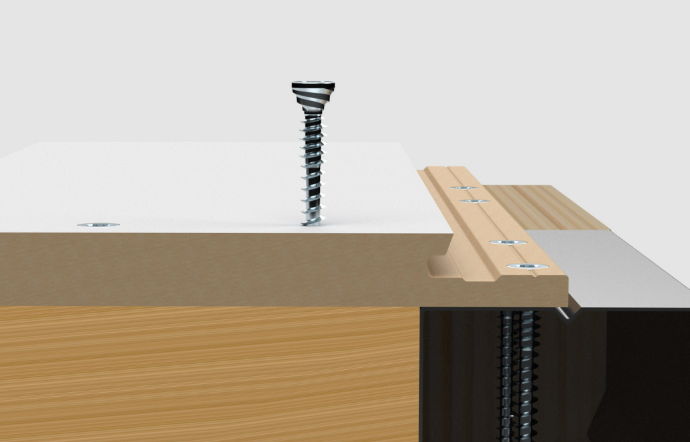

MDF to Wood

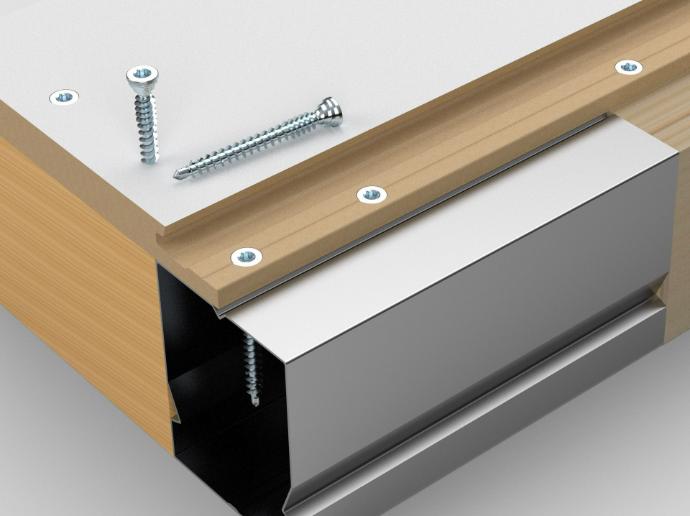

MDF to Steel

Burr-free on Joint

Clean on Surface
